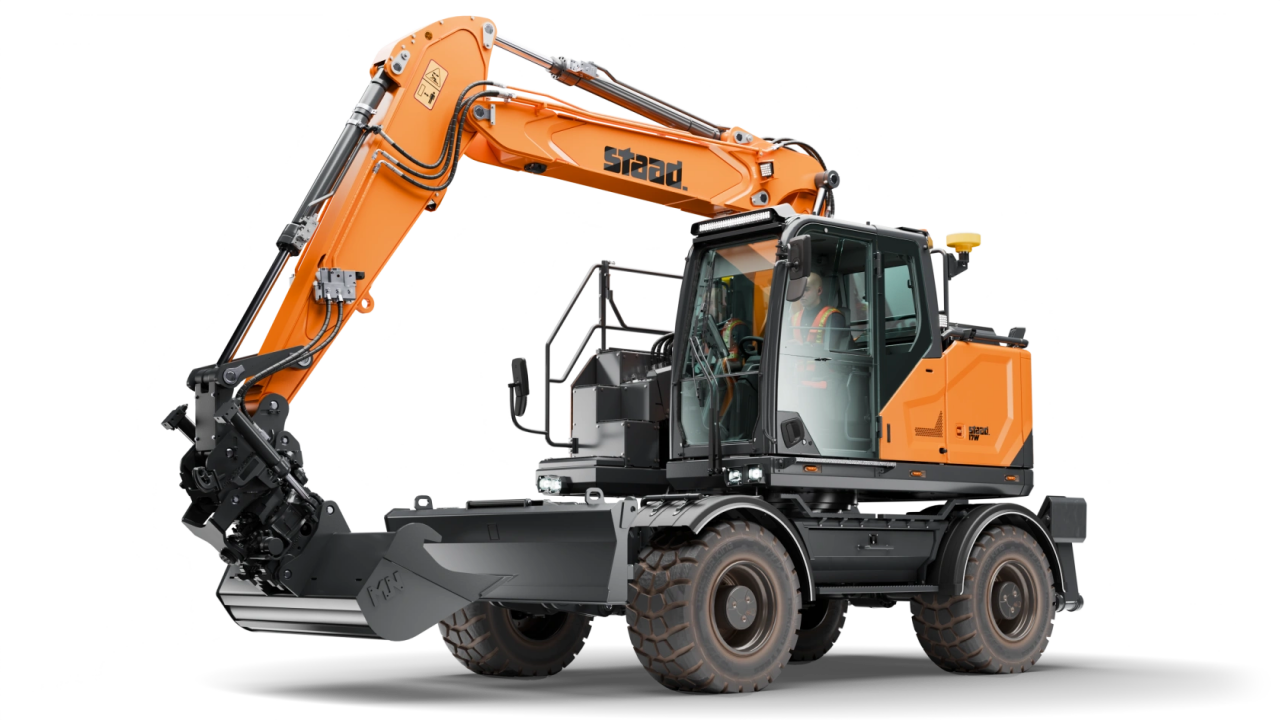

Electric wheel excavator
The STAAD 17W is not just any electric wheel excavator, but a groundbreaking, innovative and future-proof solution. This excavator is therefore the best choice for a wide range of tasks.
Danfoss eDrive, the power to be extra productive
The STAAD 17W is powered by an advanced Danfoss electric motor with SRPM technology, which is exceptionally efficient and durable. The liquid cooling system ensures reliability and a long lifespan, even under heavy conditions.
The compact design makes the motor lighter and more efficient than conventional motors, optimizing performance and energy savings. With 104 kW of power and 600 Nm of torque, the motor provides the necessary strength and precision for heavy tasks.
Danfoss has an excellent after-sales reputation in Europe, which increases the long-term value of the machine, even in the second-hand market.
ZF eTRAC drivetrain
Staad has collaborated with ZF for the integration of the eTRAC electric drive system, which features a 2-speed powershift transmission, liquid-cooled PSM electric motor with inverter, integrated parking brake, and robust ZF axles. The system delivers a maximum torque of 850 Nm and a continuous power of 80 kW. The standard hill hold system prevents rollback.
The eTRAC system has three driving modes: Low, medium, and high. In driving mode, the motor is powered by the Powerbox 300 battery, while in braking and deceleration mode, it functions as a generator, returning energy to the battery through regenerative energy recovery. This increases operational efficiency and sustainability.
By making driving independent of the hydraulic system, it is possible to drive and operate all hydraulic functions simultaneously without affecting each other, ensuring optimal efficiency and work satisfaction.
Highlights
- 100% electric design
-
The STAAD 17W is not a converted machine, but fully designed and manufactured as a zero-emission solution.
- Maximum operating time
-
This machine offers 9 to 11 hours of continuous operation, without intermediate charging or battery swapping, under average usage (measured during field tests).
- 24/7 operational capacity
-
Thanks to a unique patented battery swapping system, the STAAD 17W can operate continuously. Swapping the Powerbox 300 battery takes less than five minutes. By connecting a fixed DC power supply to the CSS type 2 connector in the undercarriage, work can even be done 24/7 with a cable.
- Compact and manoeuvrable
-
The design of the machine is optimised for working in tight spaces, with a compact upper structure and innovative boomdesign. The total swing radius of the upper structure is reduced by 74 cm when compared to a similar standard 17-tons diesel excavator.
- Work lights
-
Unmatched sight and visibility. High-quality integrated LED lighting enhances the appearance and provides extra safety in all working conditions.
- Strict standards
-
The machine meets strict safety standards, such as UN ECE R10, 2006/42/EC, UN ECE R100.03, and NEN ISO 5006. No other electric excavator offers the same level of safety and reliability as the STAAD 17W.
Explore the upper structure

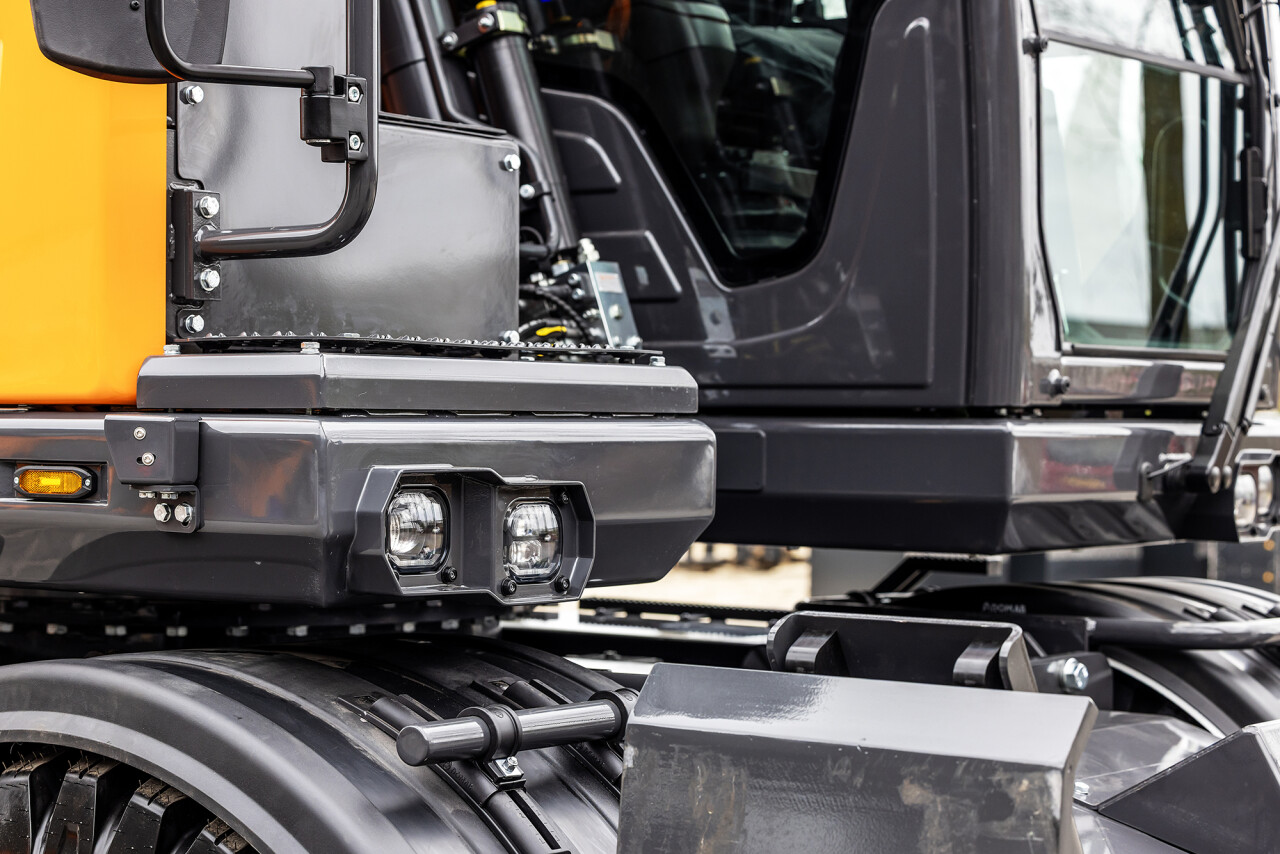

The upper structure
Build to top it all
This upper structure combines all advanced features, durability, and customization options in one. A superior upper structure built for both performance and safety in demanding work environments.
- Integrated LED lighting: For optimal visibility and safety under all conditions;
- Ride control boom suspension system: For optimal driving comfort. Safety is ensured by a direct connection between the pressure accumulator and the boom cylinders without the use of hoses;
- Additional wear plate: Increases durability at the bottom of the arm;
- Extra lifting eye: Reinforced for better lifting capacity;
- Prepared for 3D GPS: Integrated sensors and cables for easy installation of GPS control systems.
For more features, we recommend downloading the STAAD 17W brochure.

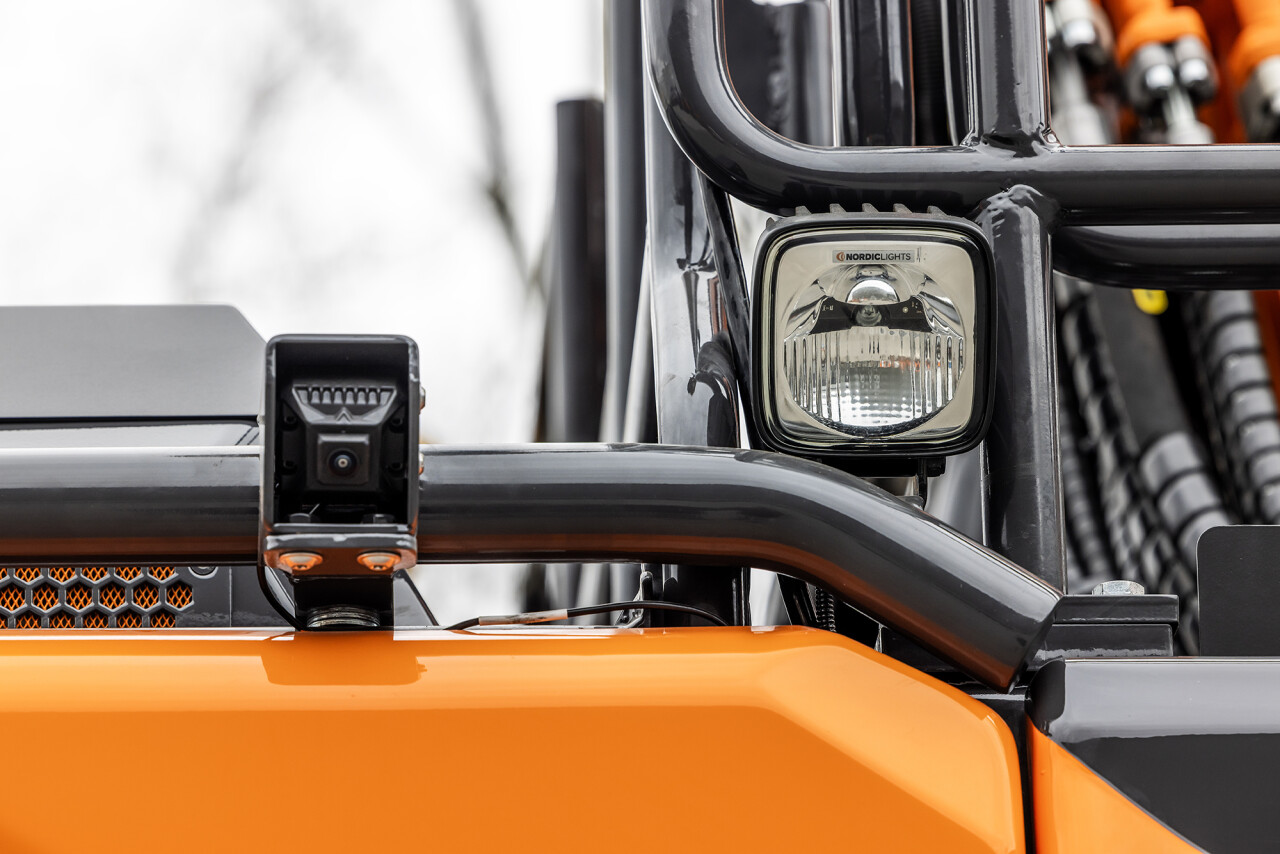

Camerasystem
Increased safety and efficiency
The AI-driven obstacle avoidance system and 360-degree camerasystem enhance safety and efficiency. Haptic feedback from the joysticks warns the operator of unsafe situations.

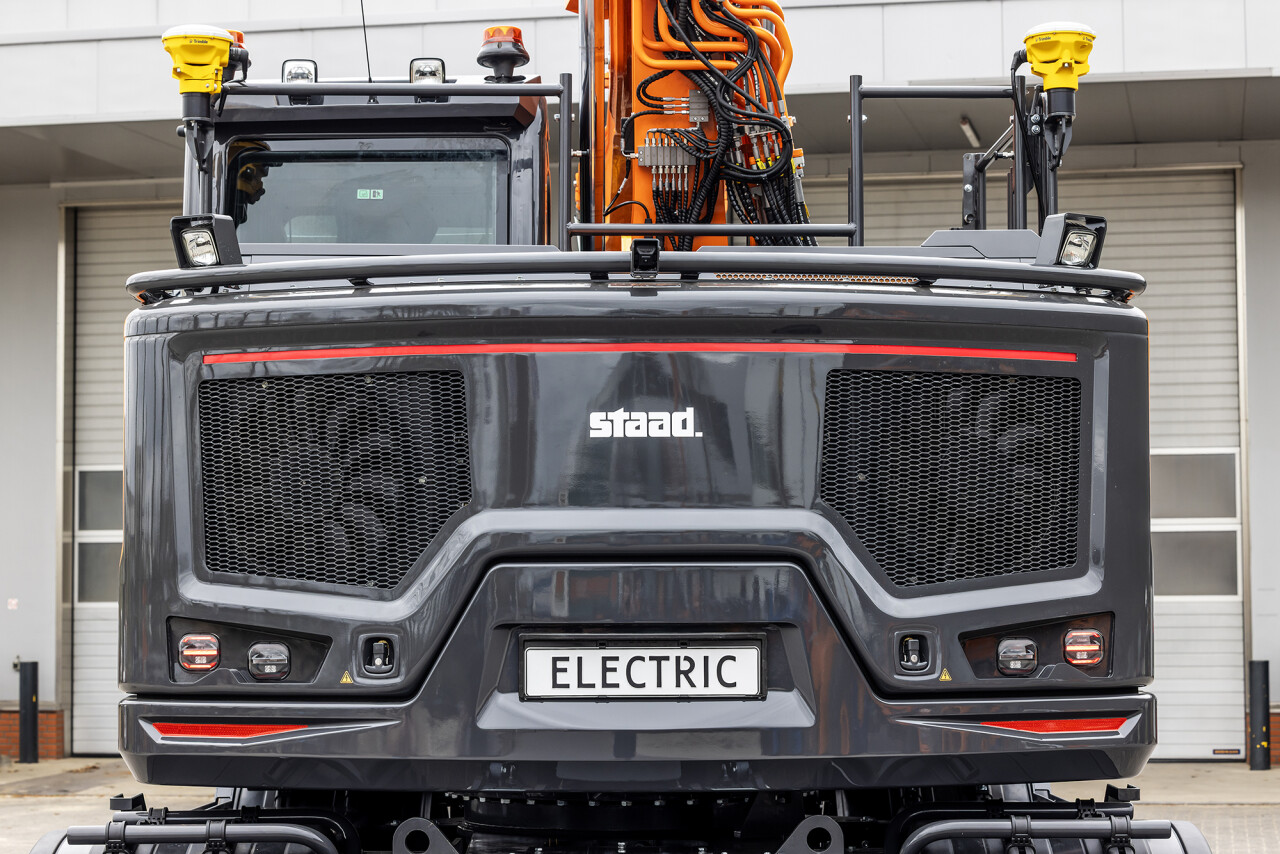

360-degree
Perfect visibility
The operator has full 360-degree visibility from the cab thanks to the low-mounted, swappable Powerbox 300 battery, ensuring greater safety and maximum situational awareness.

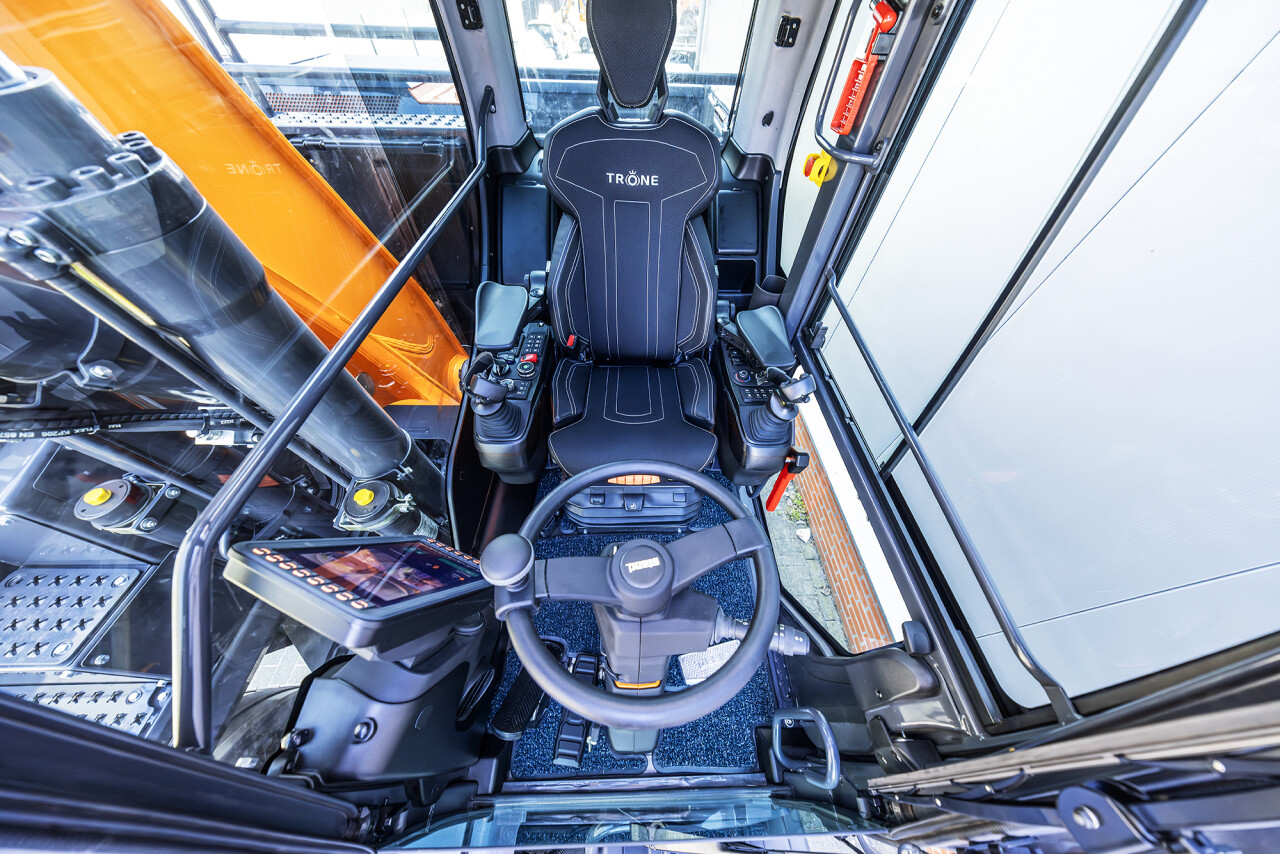

High-end
Cabin with exceptional comfort
Discover our high-end excavator cabin, designed with the European operator in mind. This cabin offers a perfect balance of advanced design, innovative technology, and exceptional comfort to meet the highest standards for optimal performance and operator satisfaction.
With a very spacious interior, superior ergonomics, and intuitive controls, the operator works efficiently and comfortably throughout the day. Top-quality materials and a thoughtful design create the ultimate working environment, where every detail contributes to an optimal experience and operator satisfaction.
More to explore

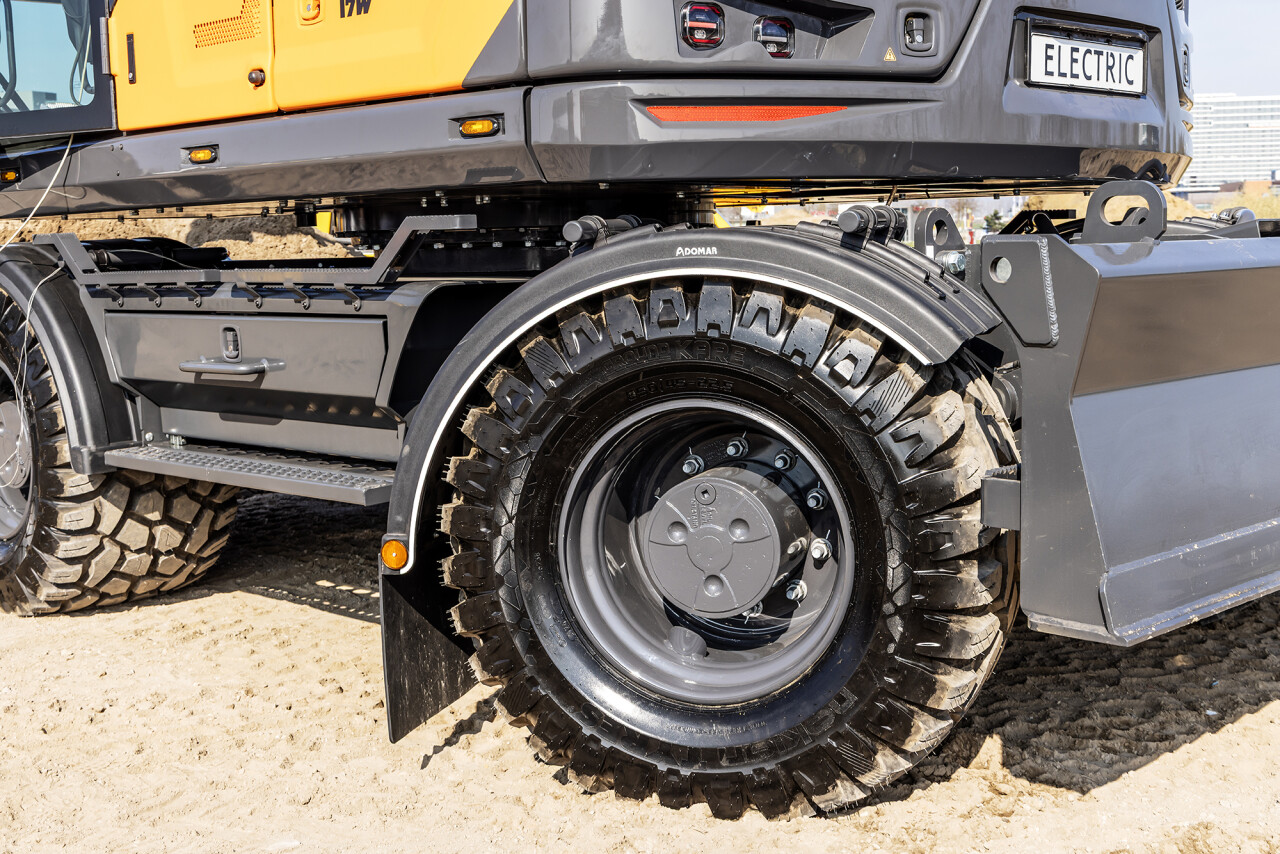

Undercarriage
Redefined
This undercarriage is designed for optimal performance, durability, and ease of use, ensuring every task is carried out efficiently, safely, and with precision.
- Ground clearance: High ground clearance for excellent manoeuvrability, even on soft or uneven terrain;
- Protected undercarriage: Well-shielded to enhance durability in challenging environments;
- 2 x 60 l/min double-acting hydraulic valves: Supports functions like trailer tipping or tailgate opening and closing;
- 24V 13-pin connector: Enables easy connection to external equipment or trailers;
- DC connector interface: Allows 24/7 operation and DC fast charging up to 150 kW;
- Large wheel compatibility: Supports large tire sizes, even at maximum steering and tilt angles.
For more features, we recommend downloading the STAAD 17W brochure.

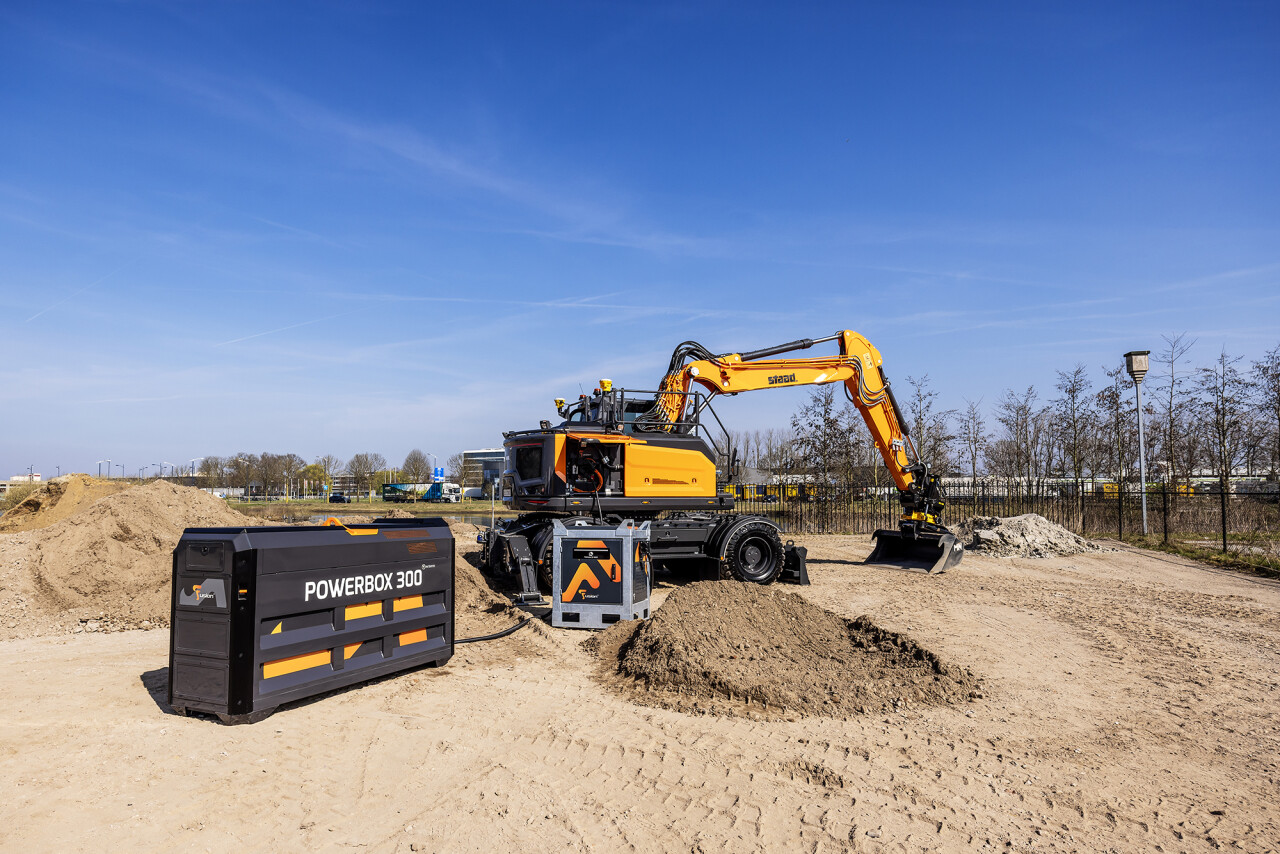

Charging
AC and DC
AC charging via a power outlet
The Powerbox 300 can be charged directly from the grid using a Mennekes CEE 32A 5-pin plug. This plug supports 3-phase connections (L1, L2, L3), neutral (N), and ground (PE) and is widely used in industrial settings for powering heavy machinery and equipment. The AC charging power is 400VAC@32A, with a charging time from 0% to 100% SOC (State of Charge) of approximately 14.5 hours.
DC charging via a DC charger using the CCS type 2 connector in the undercarriage
The charging speed ranges from 0 to 150 kW. At 150 kW, the charging time from 0% to 100% SOC (State of Charge) is approximately 2 hours.

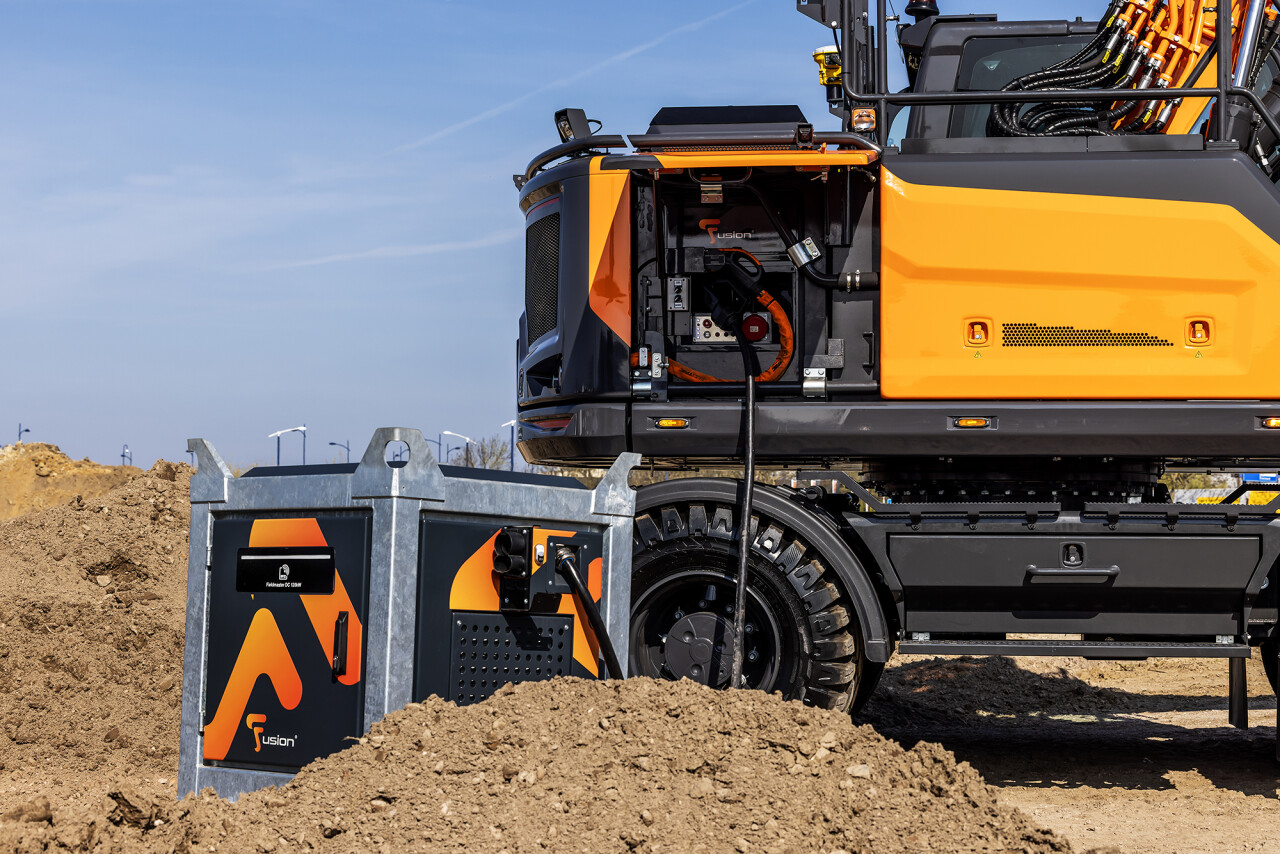

DC charging via a DC charger
The Powerbox 300 can also be charged using a CCS Type 2 connector interface, located on the Powerbox 300 in the upper structure of the machine. The charging speed ranges from 0 to 150 kW. At 150 kW, the charging time from 0% to 100% SOC is approximately 2 hours.
Telematics
Realtime insights
Both the STAAD 17W and the Powerbox 300 are equipped with an advanced telematics system featuring the latest technology. This system enables operators and planners to access real-time data directly from their smartphones, including key information such as location, machine operating hours, charge status, charging procedures, operating temperatures, maintenance needs, safety alerts, and more. This offers a peace of mind.
For planners, the system seamlessly integrates with performance tracking, hour logging, and automated invoicing systems, streamlining operations and improving efficiency. Regarding dealer support, the telematics system allows dealers to remotely diagnose fault codes and notifications, as well as perform over-the-air software updates. This significantly enhances machine efficiency and availability, reducing repair and maintenance costs.

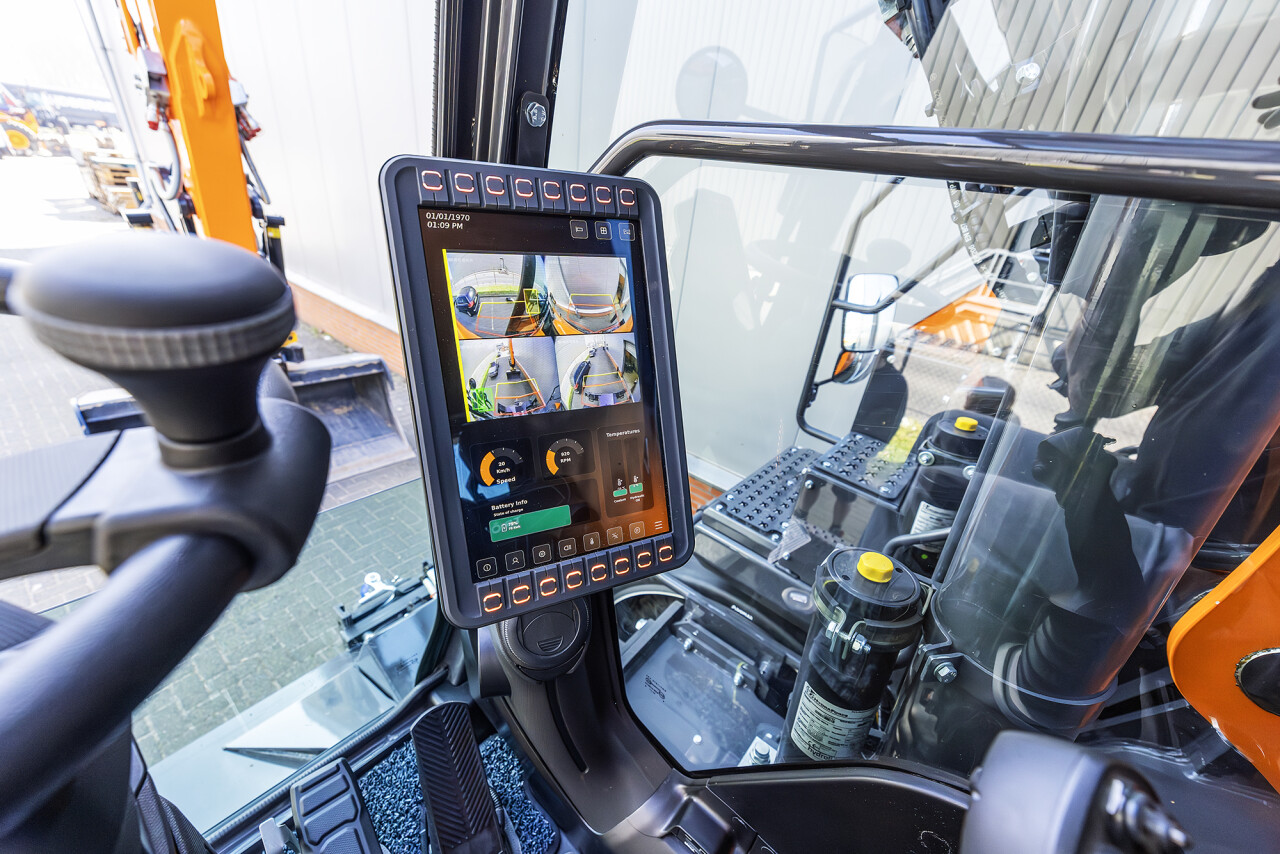

AI-powered
Safety and vision system
AI-powered collision avoidance and 360° vision system
- Personnel and equipment safety: Proximity sensors detect nearby workers or obstacles, preventing accidents.
- 360° bird’s-eye view cameras provide a seamless, AI-stitched overhead view of the excavator’s surroundings.
- Drone view provides an elevated perspective for a better worksite overview.
AI integration
- Real-time object recognition and tracking enhance safety and decision-making.
- Automatic collision alerts: AI detects obstacles and triggers warnings via display and haptic joystick feedback.
Excavation camera system
For improved material loading, a factory-fitted camera on the digging arm (with a work light and protective cover) ensures clear visibility, even in low-light conditions, which enhances both safety and efficiency.
Technical specifications
- Danfoss eDrive electric motor Learn more +
-
The Danfoss electric motor is based on Synchronous Reluctance Assisted Permanent Magnet (SRPM) technology. It is liquid-cooled and designed to operate in harsh working conditions. Due to its compact size, it has a lower weight and higher efficiency compared to conventional electric motors.
- Nominal power
- 104 kW
- Maximum torque
- 600 Nm
- ZF eTRAC drivetrain Learn more +
-
The ZF eTRAC system has 3 driving modes: Low, medium, and high. In driving mode, the motor is powered by the Powerbox 300 battery, while in braking and deceleration mode, it acts as a generator, returning energy to the battery through regenerative energy recovery.
- Driving speed (creep - low - high)
- 3.5 - 10 - 30 km/h
- Maximum traction
- 10 tons
- Minimum turning radius
- 6.4 meters
- Maximum climbing ability
- 32°/ 62%
- Maximum torque
- 850 Nm
- Continuous power
- 80 kW
- Capacity fluids Learn more +
-
- Hydraulics oil tank
- 96 liters
- Radiator
- 5 liters (2 x)
- Hydraulic functions Learn more +
-
The STAAD 17W comes factory standard with additional hydraulic functions:
- Hydraulic breaker function: High volume, single-way auxiliary circuit (350 l/min, max. pressure 350 bar).
- Hydraulic shear or tilting bucket function: High volume, two-way auxiliary circuit (350 l/min, max. pressure 350 bar).
- Rotation function: Low volume auxiliary circuit (40 l/min, max. pressure 180 bar).
- Hydraulic quick coupler function: Low volume auxiliary circuit for operating the hydraulic quick coupling (10 l/min, max. pressure 180 bar).
- Return to tank function: High volume line to the hydraulic tank through a low-pressure return filter.
- Easy connection with hydraulic attachments: A factory-installed coupling block with hydraulic couplings and integrated shut-off valves is mounted on both sides of the dipper arm, facilitating easy and quick connection of hydraulic hoses for work tools.
- Hydraulically adjustable arti-boom: Can be smoothly operated via a roller-switch on the joystick or with the left foot pedal. This ensures seamless integration with the digging movements of the machine, improving precision and control for the operator.
All hydraulic connections in the machine comply with SAE and ORFS (European standards), ensuring reliability and easy maintenance.
- Hydraulic system Learn more +
-
- Bosch-Rexroth double variable plunger pump: For proven performance, with a maximum flow rate of 2 x 176 l/min at 2,200 rpm. The maximum system pressure is 350 bar.
- Independent or combined operation: Providing flexibility depending on the task.
- Cross-sensing and energy saving pump system: This system improves efficiency by adjusting the pump output, optimizing energy consumption, and reducing waste.
- Automatic low-speed system: The system automatically adjusts to a lower motor speed when possible, saving energy and reducing operational costs.
- Four operating modes and four power modes: These modes provide refined control over performance, tailored to different work environments and tasks to maximize efficiency and power.
- Hydraulic volume and pressure control for attachments: The pump volume and working pressure can be adjusted directly from the central 12-inch touchscreen display, providing precise control over hydraulic attachments.
- Smart pump system control: Advanced software technology ensures optimal pump operation, improving overall efficiency, refined handling, and performance in various operational conditions.
- Powerboost function of 370 bar: Provides extra lifting and digging force when needed.
- Hydraulic hose burst valves: All load-bearing hydraulic cylinders, including the bucket cylinder, are standardly equipped with hose burst valves, ensuring safety and stability.
- Swivel mechanism Learn more +
-
For the swivel mechanism, an axial piston motor isused that drives a two-stage planetary gearbox in an oil bath for maximum torque:
- Swivel bearing: Ball bearing of the sliding type, single row, with induction-hardened inner gear.
- Inner gear and pinion submerged in lubricant.
- Increased swivel torque results in a shorter swivel time.
- The swivel brake for parking is activated by a spring and hydraulically released.
- Maximum swivel speed
- 13.5 rpm
- Maximum swivel torque
- 3565 kgf - m
- AC charging Learn more +
-
The 17W has the ability to AC charge, providing a convenient option to charge everywhere, overnight. Using a Mennekes CEE 32A 5-pin plug (3-phase, 20 kW) to make charging viable everywhere.
- Charging connection
- Type 2 connection
- Charging power
- 22 kW AC
- Charging time
- 14 hours 30 minutes (400 V / 32 A, 0-100 % SOC)
- Charging protocols
- ISO 15118
- DC charging Learn more +
-
The 17W has the ability to DC charge, providing a convenient option to quickly charge using the well-known car chargers found around the globe.
- Charging connection
- Combo CCS Type 2
- Charging power
- 150 kW DC
- Charging time
- 2 hours (0 - 100 % SOC)
- Charging protocols
- DIN SPEC 70121
ISO 15118
- Infotainment system Learn more +
-
By connecting the user’s smartphone to the STAAD 17W infotainment system, operators can seamlessly access multiple applications, through the 12" touchscreen:
- Messages
- Navigation Apps
- Music
The cabin also offers:
- Bluetooth phone connection
- DAB+ Radio
- USB connectivity
- Dimensions and weight Learn more +
-
Dimensions arti-boom Boom length 4900 mm Arm length 2500 mm Height to top of cabin 3182 mm Hood height 2439 mm Wheelbase 2807 mm Tail swing radius 2006 mm Ground clearence 483 mm Counterweight clearance 1238 mm Driving length 5857 mm Driving width 2490 mm Driving height 3982 mm Transport length 7951 mm Transport width 2490 mm Transport height 3182 mm Weight 17.4 tons
